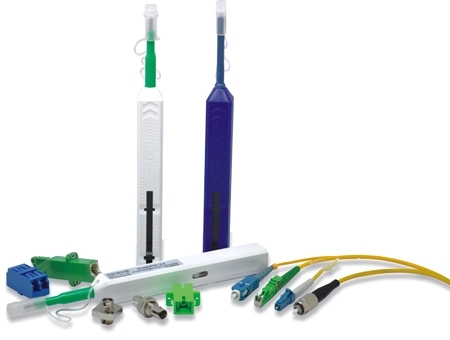

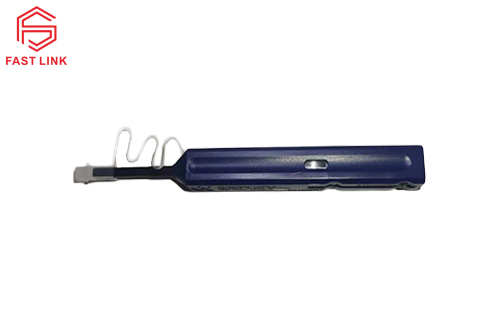

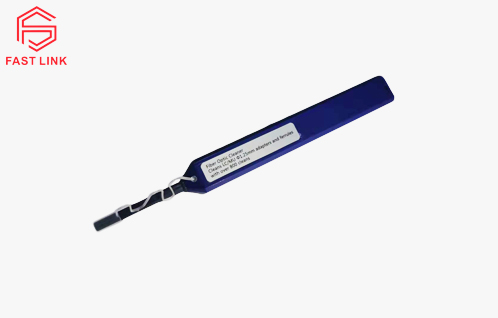

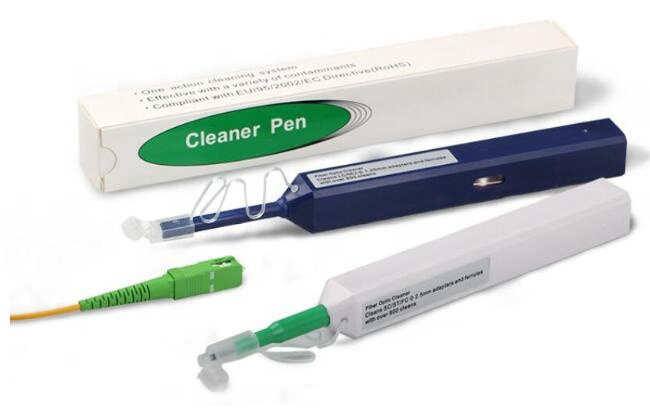

Fiber Optic Cleaner Pen
It is a high-perfomance device designed for cleaning the ferrule end faces of SC connectors, ST connectors and FC connectors.This instrument cleans the ferrule end faces removing dust, oil, and other debris without nicking or scratching the end face. The clean pen is specially designed to clean the APC and UPC connector.
Application:
* Fiber network panels and assemblies
* Outdoor FTTX applications
* Cable assembly production facility
* Testing laboratories
* Server, switches, routers and OADMS with SC/ST/FC interface
Feature:
* Apply to 2.5mm universal, SC/PC/ST (PC, APC, UPC) or 1.25mm, LC/MU (PC, APC, UPC) connector
* Easy pushing motion engages connector and initiates cleaner
* Disposable with 800+ cleanings per unit
* Made from anti static resin
* Cleaning micro fibers are densely stranded and debris free

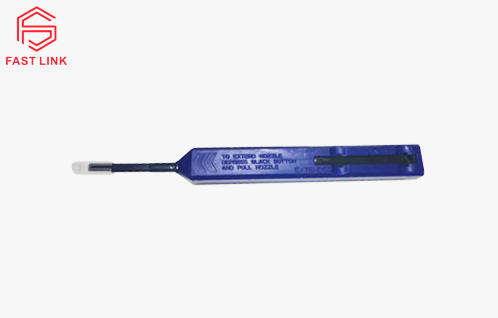

* Extendable tip reaches recessed connectors
* Cleaning system rotates 180 for a full sweep
* Audible click when engaged
Specification:
|
Model Number |
FS-125 |
|
Classification Color |
Blue |
|
Applicable Fiber Optic Connector & Adapter |
MU,LC |
|
Dimension(mm) |

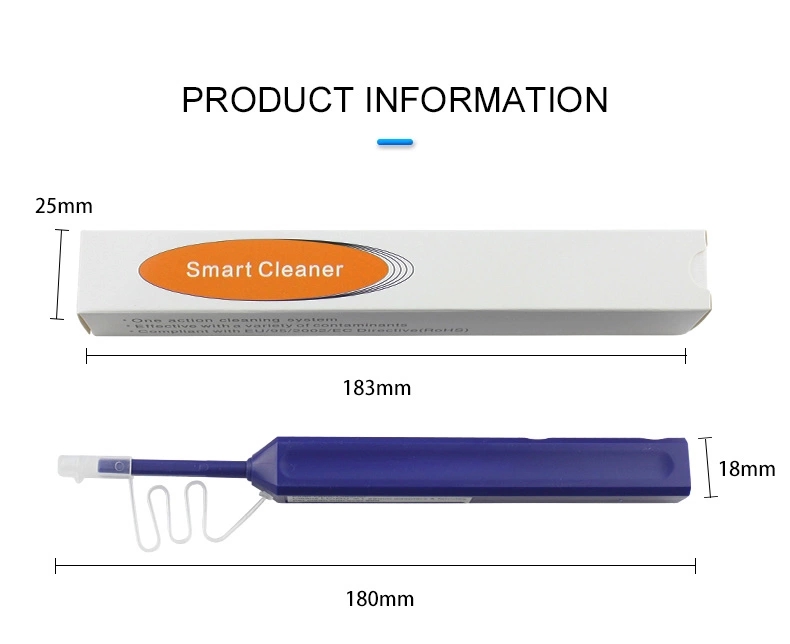

W17.5*H17.5*L165 |
|
Function/Handling type |
Fiber Cleaner |
|
No. of Cleanings |
>800 times |
|
Cleaning Method |
Dry(Cleaning the Zirconia ferrule endface with cleaning clothwith no chemical or solvent) |
|
|
|
|
Model Number |
FS-250 |
|
Classification Color |
Green |
|
Applicable Fiber Optic Connector & Adapter |
SC,FC,ST,E2000 |
|
Dimension(mm) |
W17.5*H17.5*L165 |
|
Function/Handling type |
Fiber Cleaner |
|
No. of Cleanings |
>800 times |
|
Cleaning Method |
Dry(Cleaning the Zirconia ferrule endface with cleaning clothwith no chemical or solvent) |
