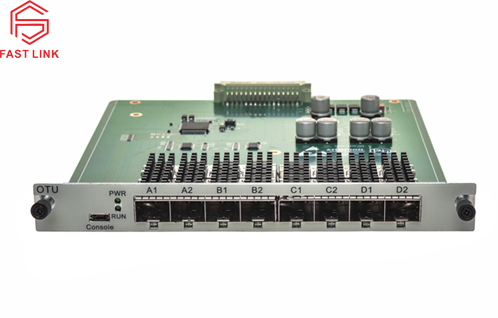

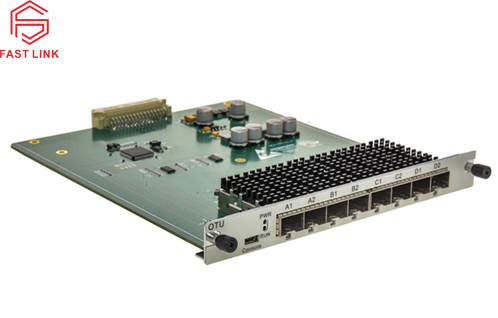

25G OTU
25G OTU can be used as a transponder or as a repeater and regenerator. It provides a range of options for repeating optical data signals, converting them to other optical or electrical formats, or combining multiple fibers onto a single fiber. With transparent bi-directional forwarding capability between the 2 fiber media, the 25G OTU can be deployed in 10G optical network or 25G optical network, which brings you the best and simplest solution for Metro, Regional and Long Haul WDM optical networks.
Product Features
l Support signal rate: 25.5Gbps~28.1Gbps
l Support service access types: Ethernet, FC, etc
l Support Optical signals Regeneration, Reshaping and Retiming
l Support 4 channels dual direction or 8 channels single direction conversion
l Plug-in card design, easy expansion
Product Applications
l DWDM network
l Data center network
Product Specifications
|
Items |
Unit |
Specifications |
|
Access signalrate |
Gbps |
25.5~28.1 |
|
Signal mode |
----- |
SM/MM |
|
Optical transceiver package |
----- |
SFP28 |
|
Optical transceiver slot numbers |
----- |
8 |
|
Two-way service channel numbers |
----- |
4 |
|
Extinction ratio |
dB |
≥6 |
|
SMSR |
dB |
> 30 |
|
Consumption |
W |
＜20 |
