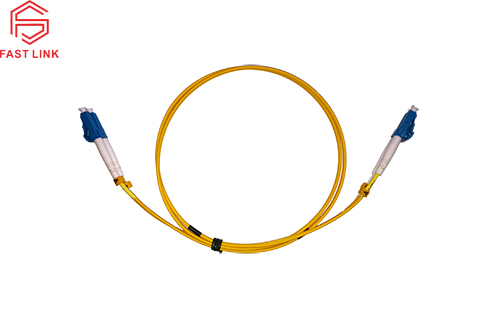

Optical Patch Cord
Fast link's optical fiber patchcord( fiber jumper)with ISO9001 and 14001 certification ,ROHS. sometimes called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.The LC, a smaller form factor fiber optic connector, is most commonly used. Fiber jumpers also come in hybrid varieties with one type of connector on one end and another type of connector on the other. Jumpers are used in the same manner as patch cords, to connect end devices or network hardware to the structured cabling system.
High dense spaces
Telecommunication
Ceramic ferrules connectors
CATV,FTTH,LAN
Low insertion loss,high return loss
Fiber optic sensors
Half the size of standard connector
Optical transmission system
Excellent mechanical endurance
Test equipment
High credibility and stability
Good in repeatability and exchangeability
100% Insertion, Return Loss, End face and Interference inspection
Feature
Application
Parameter |
FC,SC,LC |
ST,MU |
MTRJ |
||||
SM |
MM |
SM |
MM |
SM |
MM |
||
UPC |
APC |
UPC |
UPC |
UPC |
UPC |
UPC |
|
|
Operating Wavelength（nm） |
1310, 1550 |
850, 1300 |
1310, 1550 |
850, 1300 |
1310, 1550 |
850, 1300 |
|
|
Insertion Loss（dB） |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
|
Return Loss（dB） |
≥50 |
≥60 |
≥35 |
≥50 |
≥35 |
≥50 |
≥35 |
|
Repeatability（dB） |
≤0.1 |
||||||
|
Interchangeability（dB） |
≤0.2 |
||||||
|
Plug times（times） |
≥1000 |
||||||
|
Tensil Strength（N） |
≥100 |
||||||
|
Durability（dB） |
≤0.2 |
||||||
|
Operating temperature（℃） |
-45~+75 |
||||||
|
Storage temperature（℃） |
-45~+85 |
||||||

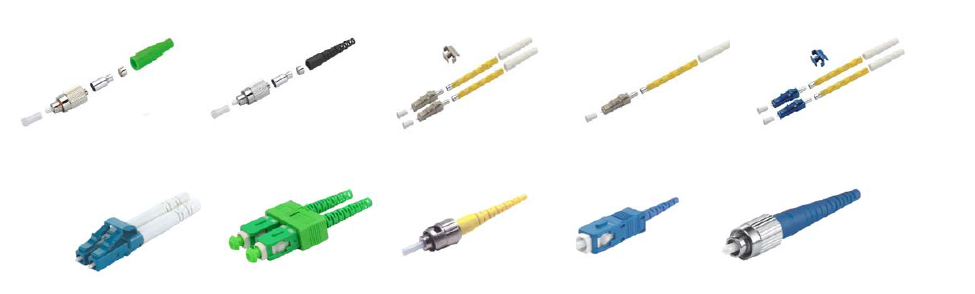

Connectors&Kits (customer-designated color for boots and dust caps)
Remark:
1、Housing material—PBT,TPE,TT,Metal material
2、Housing color—Blue(SM/UPC),Green(SM/APC),Beige(MM),Aqua
