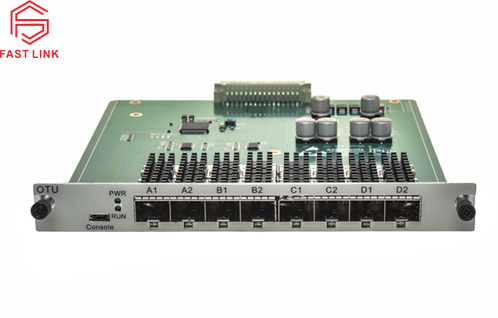

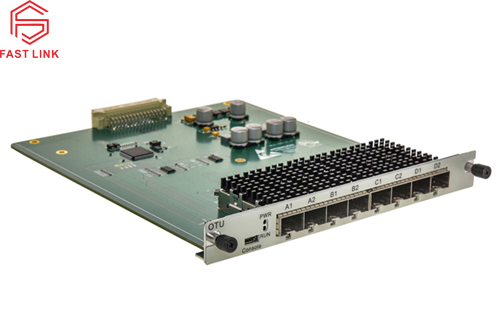

10G OTU
10G OTU can be used as a transponder or as a repeater and regenerator. It provides a range of options for repeating optical data signals, converting them to other optical or electrical formats, or combining multiple fibers onto a single fiber. With transparent bi-directional forwarding capability between the 2 fiber media, the WDM transponder brings you the best and simplest solution for Metro, Regional and Long Haul WDM optical networks.
Product Features
l SDH network
l C/DWDM network
l Data Center network
Product Applications
l Support signal rate: 42M~11.3G
l Support service access types: Ethernet, P/SDH, ATM, FC, etc
l Support Optical signals Regeneration, Reshaping and Retiming
l Support 4 channels dual direction or 8 channels single direction convertion
l Plug-in card design, easy expansion
Product Specifications
|
Function |
Parameters |
|
Card type |
10G OTU-3R |
|
Interface |
lClient-side interface: 4 SFP+ hot-pluggable, compatible with SFP lWDM-side interface: 4 SFP+ hot-pluggable, compatible with SFP |
|
Line mode |
Supports transparent transmission of any type of service in four 42M~11.3G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. |
|
Relay mode |
Support 42M~11.3G wavelength electrical relay |
|
Support service type |
lGE, 10GE l1/2/4/8/10G FC lSTM-16/64 lCPRI-2/3/6/7 |
|
WDM technology |
lSupport CWDM: 18 waves lSupport DWDM: C band 50GHz 96 waves |
|
Network management function |
Support real time monitoring of the port working state, including: transmitting optical power and receiving optical power, temperature, etc. |
|
Power consumption |
15W (max, including transceiver) |
|
MTBF |
＞100000 hours |
