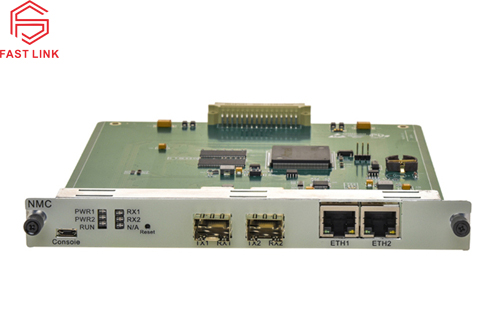

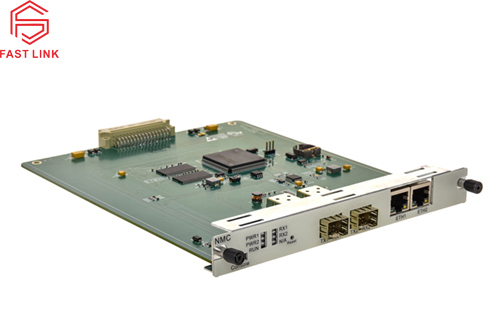

NMC
The management card is used to manage network by supporting management interface of Ethernet communication. Through WEB or OTN3000 NMS software, all function cards could be monitored and managed.
Product Features
l High-speed ARM processor is used to provide powerful data processing capability. It can collect the status information, alarm events and performance parameters of each single card’s function module, and transform, process and store them. Meanwhile, control and management information is transmitted to other functional modules of the equipment.
l Provide a Console interface to support simulation terminal operation
l Provide two RJ45 Ethernet interfaces to support IP-based graphical SNMP network management
l Provide 2 SFP interfaces to support in-band management of equipment, realize the processing of 2 optical monitoring channels, and complete the receiving and sending of optical signals of optical monitoring channel at each station.
l The management module is hot swappable and does not affect the normal operation of current service after failure.
l Support NMS network management system
l Support SNMP, Telnet, Client , WEB
Product Applications
l OTN3000 Platform for service cards management and monitoring
Product Specifications
|
Function |
Description |
|
Local management serial port |
Support a Micro-USB local management serial port |
|
Remote management Ethernet port |
Supports two RJ45 Ethernet interfaces, interface rate 10/100/1000M adaptive |
|
OSC optical monitoring port |
Supports two pluggable optical SFP ports with LC interface |
|
Network management method |
Support CLI, Telnet, SNMP, Web and NMS management methods |
|
Exchange function |
Support IP communication between devices to realize integrated management |
|
Protection function |
Plug out or failure of network management card will not affect existing service |
|
Maintenance function |
Support local or remote software online upgrade |
|
Reset function |
Support hardware reset of local NMC card by operating key |
|
working temperature |
-10℃~+60℃ |
|
Working humidity |
5%~95% |
|
Number of occupied slots |
Support OTN3000 full range chassis |
|
Maximum power consumption |
5W |
