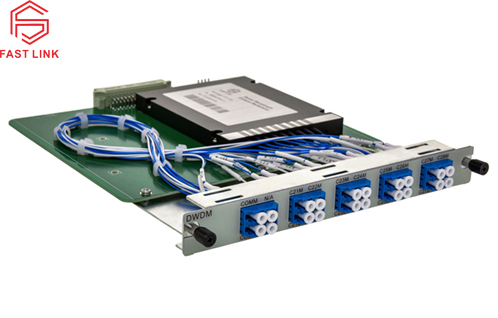

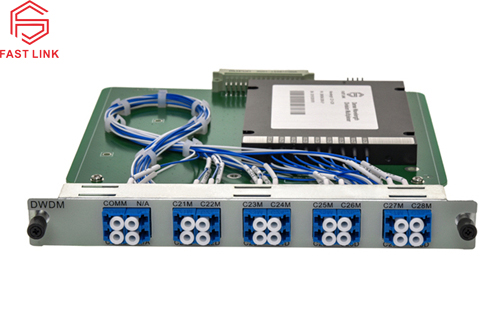

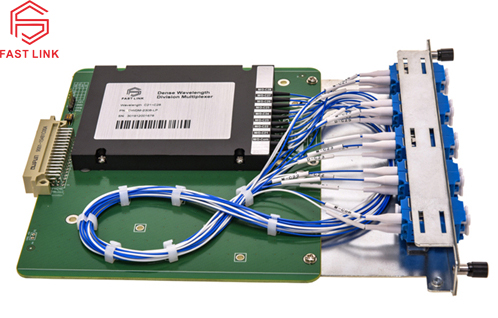

WDM MUX DEMUX
WDM is multiplexing/demultiplexing card based on WDM technology is mainly used in CWDM or DWDM systems to complete the multiplexing and demultiplexing functions. At the transmitting end, multiplexes optical signals of different ITU-T DWDM wavelengths into a single optical fiber for transmission; at the receiving end, demultiplexes the combined signal in the optical fiber into signals of different ITU-T DWDM wavelengths.
Product Features
l Low insert loss
l Low polarization loss
l High-channel isolation
l High reliability
Product Applications
l CWDM network
l DWDM network
Product Specifications
|
Parameters |
Unit |
Specifications |
||
|
Wavelength Range |
nm
|
CWDM: 1271nm~1611nm DWDM: C Band（100GHz） |
||
|
Channel Center Wavelength |
nm |
ITU channels |
||
|
Channel Spacing |
Ghz |
100 |
||
|
Channel Pass band (@-0.5dB) |
nm |
0.22 |
||
|
Channel No. |
λ |
4 |
8 |
16 |
|
Insertion Loss |
dB |
≤ 2.5 |
≤ 3.5 |
≤4.8 |
|
Adjacent Channel Isolation |
dB |
≥ 30 |
||
|
Non-adjacent Channel Isolation |
dB |
≥ 45 |
||
|
Wavelength thermal stability |
nm/℃ |
≤ 0.002 |
||
|
Insertion loss thermal stability |
dB/℃ |
≤ 0.005 |
||
|
PDL |
dB |
≤ 0.1 ≤ 0.15 ≤ 0.20 ≤ 0.25 |
||
|
Polarization mode dispersion |
ps |
≤ 0.1 |
||
|
Directivity |
dB |
≥ 50 |
||
|
Return loss |
dB |
≥ 45 |
||
|
Optical Power |
mW |
≤ 300 |
||
|
Consumption |
W |
＜1 |
||
