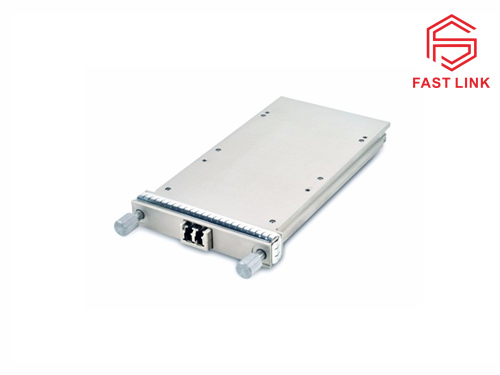

100G CFP ER4 40km
It integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, 4 lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.Product Details
Product Features
•Supports 103.1Gbps to 112Gbps bit rates
•Duplex LC connector
•Hot pluggable
•4x28Gb/s DFB-based LAN-WDM transmitter
•10x10G MLD electrical interface
•Applicable for 40km SMF connection
•Low power consumption, < 18W
•Digital Diagnostic Monitor Interfacel
•MDIO Communication Interface
•Compliant with 100GBASE-ER4 and OTU4
•Operating case temperature:
•Commerical:0 to 70 °C
Applications
•OTN OTU4
•100GBASE-ER4 100G Ethernet
•Other Optical link
