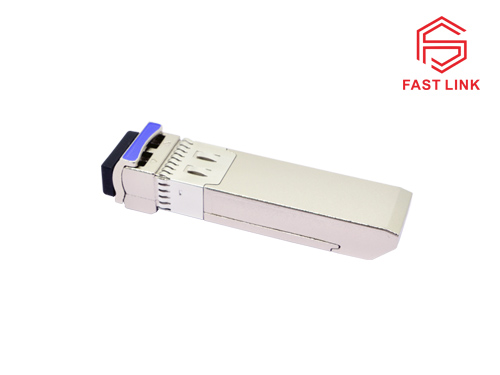

25G SFP28 ER Lite 1310nm 30km
This single-mode transceiver is SFP28 module for duplex optical data communications support 24.33Gb/s and 25.78Gb/s with CDR engaged, while, 10G ethernet optical data communication can be supported when CDR is bypassed. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This module is designed for single-mode fiber and operates at a nominal wavelength from 1295nm to 1310nm. The transmitter section uses a 1310nm multiple quantum well DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier ICProduct Details
Product Features
•Supports 24.33Gb/s to 25.78Gb/s bit rates with CDR engaged mode
•Supports 9.95 Gb/s to 10.31 Gb/s bit rates with CDR bypassed mode
•Compliant with MSA SFP+ Specification SFF-8402
•Single 3.3V Power supply
•Duplex LC Connector Interface, Hot Pluggable
•1310nm DFB transmitter, APD-TIA Receiver
•Applicable for 30Km SMF connection
•Built-in dual CDR
•Low power consumption<1.2W
•Single 3.3V power supply
•Operating case temperature: 0 to 70 。C
Applications
•CPRI Option 10
•25GbE&10GbE Optical Link
•Other optical links
