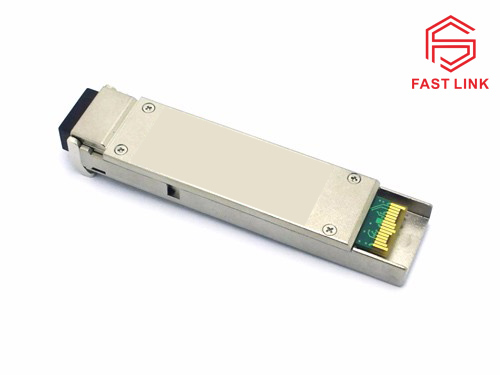

10G XFP CWDM 1470~1610nm 40Km
It exhibits excellent wavelength stability, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. The CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Product Details

Product Features

•Supports 9.95 to 11.3Gb/s bit rates

•Duplex LC connector

•Hot-pluggable XFP footprint

•Cooled 1470nm~1610nm EML transmitter, PIN photo-detector

•Applicable for 40km SMF connection

•Low power consumption, <2.0W

•Digital Diagnostic Monitor Interface

•XFP MSA Rev 4.5 Compliant

•Operating case temperature:

Commerical:0 to 70 °C

Industrial:-40 to 85°C

Applications

•10GBASE-ER at 10.3125Gbps

•SONET OC-192&SDH STM 64

•Other optical links
