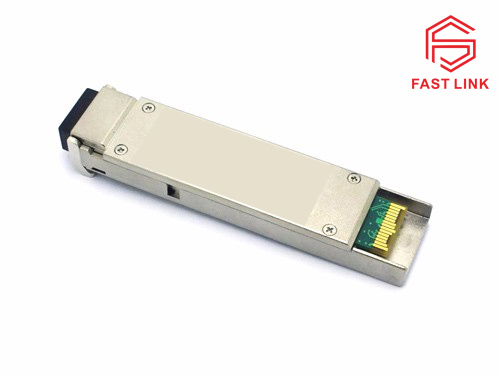

10G XFP CWDM 1270~1610nm 10Km
It is designed to transmit and receive optical data over single mode optical fiber for link length 10km. This transceiver consists of two sections: The transmitter section incorporates a CWDM DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.Product Details
Product Features
•Supports 9.95 to 11.3Gb/s bit rates
•Duplex LC connector
•Hot-pluggable XFP footprint
•Uncooled 1270nm~1610nm DFB transmitter, PIN photo-detector
•Applicable for 10km SMF connection
•Low power consumption, <1.5W
•Digital Diagnostic Monitor Interface
•Operating case temperature:
•Commerical:0 to 70 °C
•Industrial:-40 to 85°C
Applications
•10GBASE-LR/LW at 10.3125Gbps
•10G Ethernet
•Other optical links
