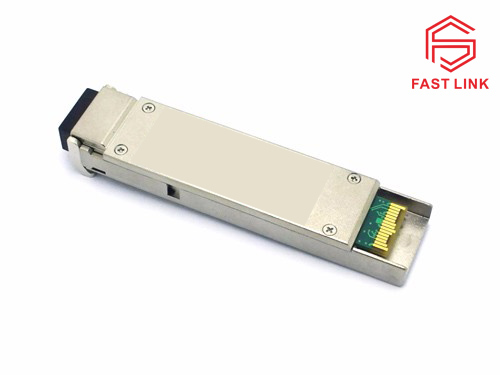

10G XFP 1310nm 10Km
Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification, now available with Commerical Temperature Range of Operation(0 °C to 70°C) and Industrial Temperature Range of Operation (-40°C to +85°C). They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel and 10G CPRI request. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.Product Details
Product Features
•Supports 9.95 to 11.3Gb/s bit rates
•Duplex LC connector
•Hot-pluggable XFP footprint
•Uncooled 1310nm DFB laser ,PIN photo-detector
•Applicable for 10km SMF connection
•Low power consumption, <1.5W
•Digital Diagnostic Monitor Interface
•No Reference Clock required
•Operating case temperature:
•Commerical:0 to 70 °C
•Industrial:-40 to 85°C
Applications
•10GBASE-LR/LW 10G Ethernet
•10G Fibre Channel
•10G CPRI
•Other optical link
