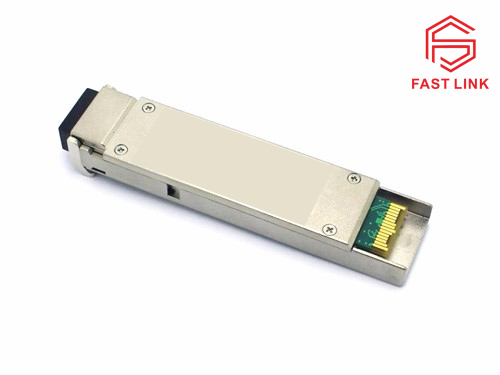

10G XFP DWDM 40Km
This DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER and 10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.The DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.Product Details
Product Features
•Supports 9.95 to 11.3Gb/s bit rates
•Simplex LC Connector
•Hot-pluggable XFP footprint
•Temperature-stabilized DWDM EMLtransmitter and PIN receiver
•100GHz ITU Grid, C-Band
•Applicable for 40km SMF connection
•Low power consumption, < 2.0W
•Digital Diagnostic Monitor Interface
•Operating case temperature:
•Commerical:0 to 70 °C
•Industrial:-40 to 85°C
Applications
•DWDM 10G SONET/SDH
•DWDM, IEEE 10GBASE-ER based Ethernet
•ITU G.709 / OTN FEC applications
•Other optical link
