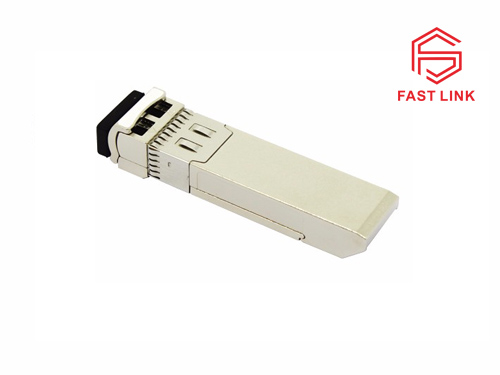

10G SFP+ DWDM 100Km
This transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Product Features
•Supports 9.95 to 11.3 Gb/s bit rates
•Duplex LC connector
•Hot pluggable SFP+ footprint
•Cooled EML transmitter and APD receiver
•Applicable for 100km SMF connection
•Low power consumption, < 1.5W
•100 GHz channel spacing
•Digital Diagnostic Monitor Interface
•Optical interface compliant to ITU-T 694.1& G.698.1
•Electrical interface compliant to SFF-8431& SFF-8432
•Operating case temperature:
•Commerical:0 to 70 °C
Applications
•10G Ethernet
•2x,4x, 8x Fiber Channel
•ITU-T G.698.1
