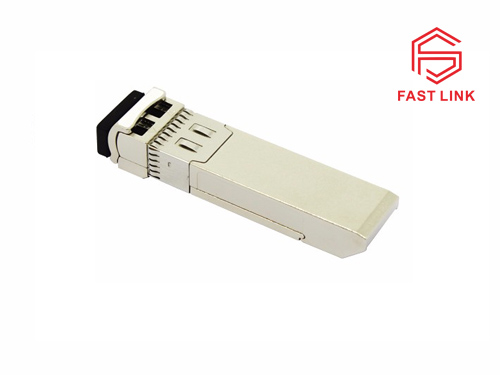

10G SFP+ DWDM 80Km

The transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.

Product Details

Product Features

•Supports 9.95 to 11.3Gb/s bit rates with Dual CDR

•Duplex LC connector

•Hot pluggable SFP+ footprint

•Cooled 1550nm EML transmitter, APD receiver

•Applicable for 80km SMF connection

•Low power consumption, < 1.5W

•Digital Diagnostic Monitor Interface

•Optical interface compliant to IEEE 802.3ae 10GBASE-ZR

•Electrical interface compliant to SFF-8431,SFF-8432

•Operating case temperature:

Commerical:0 to 70 °C

Industrial:-40 to 85°C


Applications

•10GBASE-ZR at 10.3125Gbps

•OTN G.709 OTU1e/2/2e

•4x, 8x and 10x 10G Fiber Channel

•Other optical links
